View Full Version: What is the polarity layout of the connectors?

vexacontrol >>ServoXciter EF >>What is the polarity layout of the connectors?


vexacontrol- 01-05-2007
What is the polarity layout of the connectors?

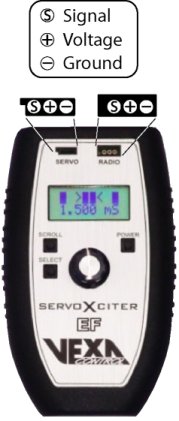

Due to an oversight when ordering the labels for the ServoXciter EF, they don't have a polarity label next to the connector ports. Here is the actual layout...
